Granny Annex 9x4m, Lumen Home 940
- Price: £33158+VAT excl. delivery
- Foundation/base size: 8.8 × 3.8 meters (29.53 x 12.47 feet)
- External height: 2.7 / 2.8 meters (8.86 / 9.19 ft)
Granny Annex 9x4m, Lumen Home 940
£33158+VAT excl. delivery

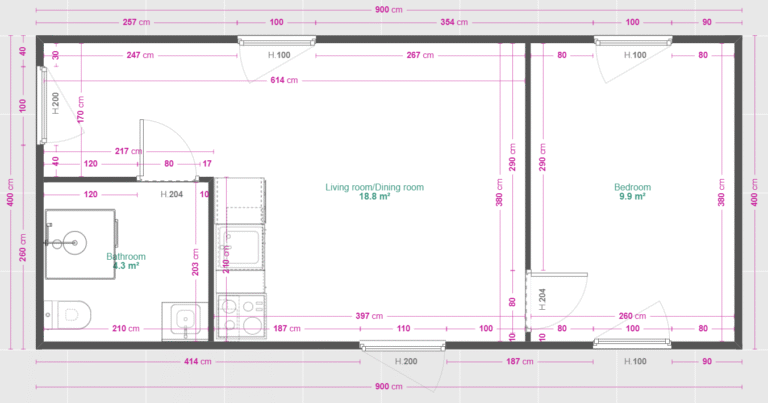

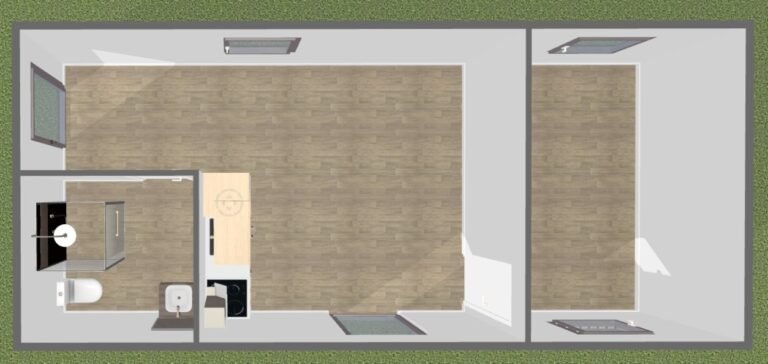

- Internal dimensions (width × depth): 8.8 × 3.8 meters (29.53 x 12.47 feet)
- External dimensions (width × depth): 9.0 × 4.0 meters (28.87 x 13.12 feet)
- Ceiling height (internal): 2.3 / 2.4 meters (7.55 / 7.87 ft)
- External height: 2.7 / 2.8 meters (8.86 / 9.19 ft)
- Foundation/base size: 8.8 × 3.8 meters (29.53 x 12.47 feet)

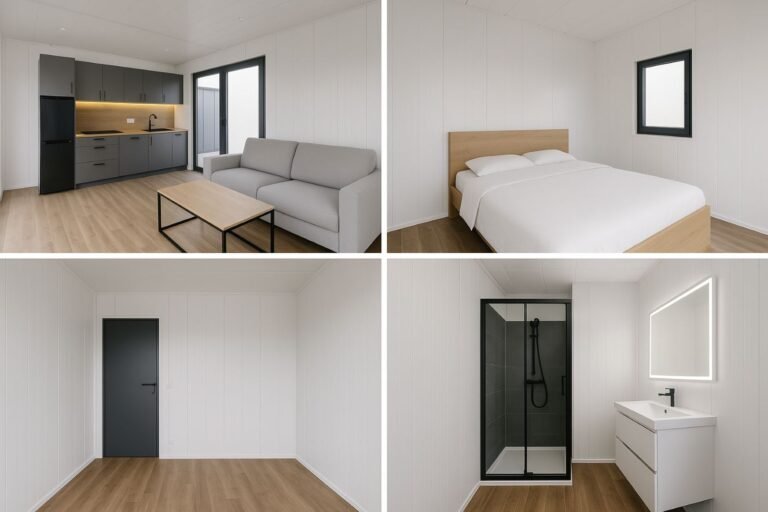

Interior Equipment:
- The bathroom including shower cabin, toilet, washbasin with mirror, insulated partition wall, and interior door.
- Sanitary installations including boiler (20 liters) and radiator are included ex-works.
- Small kitchen including mini fridge, sink, cooktop, and a set of lower and upper cabinets
Price does not include delivery and connecting the product to the mains. Please contact our team to find out the price.
Insulation / Frame
- Roof insulation: 100 mm sandwich panel (U-value: 0.22 W/m²K)
- Built on a stable steel frame (100x50x3 mm):
- Wall insulation: 100 mm sandwich panel (U-value: 0.21 W/m²K)
- Floor insulation: 100 mm sandwich panel (U-value: 0.20 W/m²K)
Materials
- Flooring: Linoleum flooring available in various colors
- Exterior cladding: Galvanized steel sheet (RAL 7016) with wood-effect WPC cladding
- Interior walls: Galvanized steel sheet in white
Windows and Doors
- Aluminium-framed, double-glazed windows and doors with insulated frames:
- 2 pcs. fixed floor-to-ceiling windows: 200 × 100 cm (6.56 × 3.28 ft)
- 1 pc. fully glazed entrance door: 210 × 110 cm (6.89 × 3.61 ft)
- 1 pc tilt-and-turn window: 50 x 50 cm (1.64 × 1.64 ft)
- Partition wall including inside door: (200 x 100 cm)
Electrical Installation
- 1 pc. fuse box
- 3 pcs. LED ceiling lights
- 5 pcs. 230 V power sockets
- 2 pc. light switch

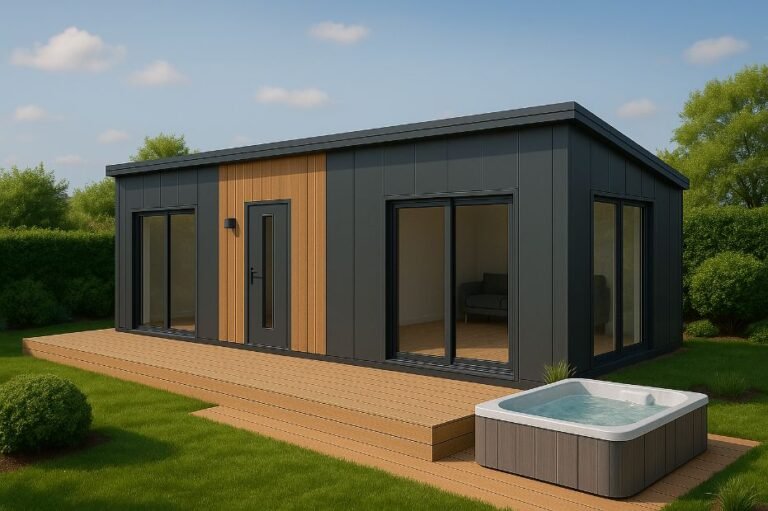

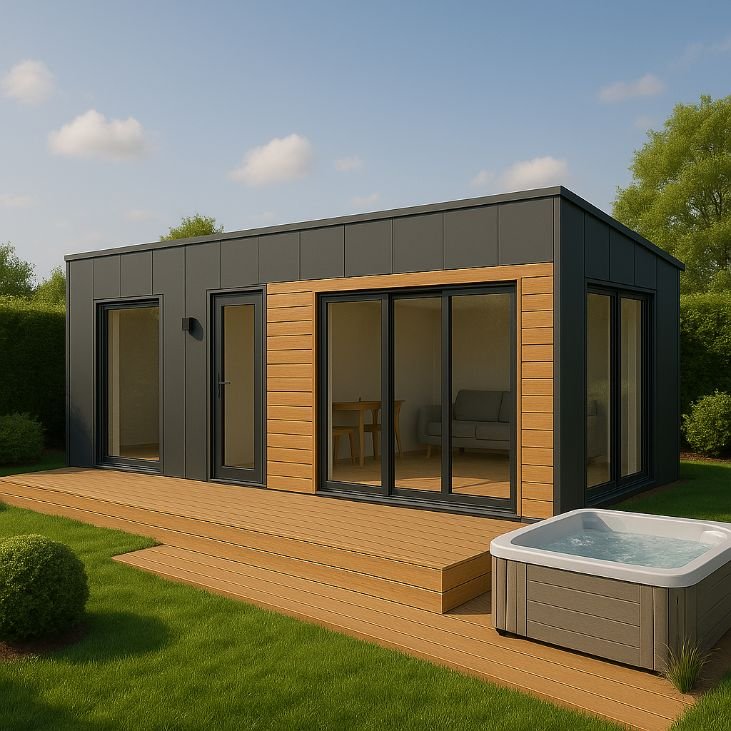

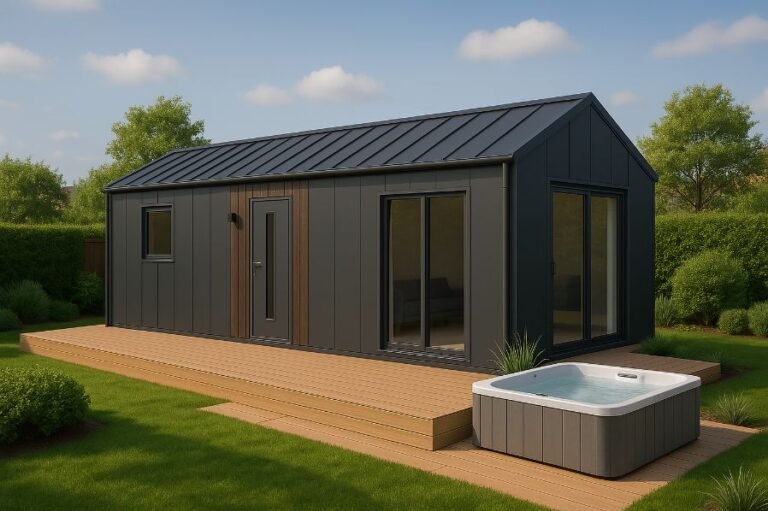

*Images are given for illustrative purposes, the product might look different depending on your specifications.
Accessories
Additional Electrical Installation
- Flush-mounted socket outlet (single): £50/unit + VAT
- Flush-mounted socket outlet (single): £50/unit + VAT
- Standard indoor LED light: £100/unit + VAT
- Electric/convection radiator 800–1000W with thermostat: £200 + VAT
- Outdoor LED light: £120/unit + VAT
Additional Exterior Cladding in Wood Look (WPC)
- Various colors available
- Price: £90/m²+VAT per wall surface
Additional Exterior Cladding in Wood Look (Metal/Sheet)
- Various colors available
- Price: £60/m²+VAT per wall surface
Additional Interior Wall Cladding with Acoustic Panels
- Various colors available
Windows & Doors
- Windows / Doors: Double-glazed glass units; Color – RAL 7016 Anthracite
RAL7016
- Window (tilt): 500×500 mm (aluminum profile, thermally insulated frame); Price £440 + VAT
- Window (tilt): 1000×1000 mm (aluminum profile, thermally insulated frame); Price £510 + VAT
- Window (fixed glass panel): 1000×2000 mm (aluminum profile, thermally insulated frame); Price £480 + VAT
- Window (tilt glass panel): 1000×2000 mm (aluminum profile, thermally insulated frame); Price £700 + VAT
- Window (double-wing): 1400×1000 mm (aluminum profile, thermally insulated frame); Price £770 + VAT
- Door (glass panel): 1100×2100 mm (aluminum profile, thermally insulated frame); Price £650 + VAT
- Double doors (glass panel): 2090×2100 mm (aluminum profile, thermally insulated frame); Price £1540 + VAT
- Price: £100/m²+VAT per wall or ceiling surface
Additional Partition Wall with Interior Door
- 100 cm (1m) long
- a set of interior doors are included for every 300cm (3m) you take
- Price: £310+VAT per one additional meter
Air conditioner with heating and cooling function, including air-source heat pump
- Efficient heating and cooling system for year-round comfort
- Integrated air-source heat pump for energy-saving performance
- Quiet operation with modern, compact design
- Price: £1300+VAT
Premium Bathroom Package (Optional)
- Dimensions: 150 × 180 cm (custom dimensions available for an additional cost)
- Partition wall: Insulated sandwich panel with polystyrene core, 70 mm thick
- Includes:
- Interior door (70×200 cm or 80×200 cm) – 1 pc
- Wall-mounted toilet – 1 pc
- Modern shower cabin (90×90 cm) – 1 pc
- Washbasin with cabinet – 1 pc
- Mirror with LED lighting – 1 pc
- Electric radiator / towel warmer – 1 pc
- Water heater / boiler (50L or 70L) – 1 pc
- Full plumbing system
- Electrical installation (concealed):
- LED ceiling light – 1 pc
- 230V socket outlets – 3 pcs
- Light switch – 1 pc
- Interior wall finish: Decorative wall cladding (color of your choice)
- Flooring: Vinyl or laminate (color of your choice)
